Better Entanglement Distillation
&
Bespoke Error Detection

Stefan Krastanov | UMass Amherst

The Quantum Technology Stack

Materials

Analog Control

Noisy Digital Circuits

Error Correction

Quantum Algorithms

Optimizing Entanglement Distillation

Alice has a qubit
Alice has a qubit
Bob too
They can be entangled! \[\begin{aligned} A=|\phi_{+}\rangle=\frac{|00\rangle+|11\rangle}{\sqrt{2}}\\ B=|\psi_{-}\rangle=\frac{|01\rangle-|10\rangle}{\sqrt{2}}\\ C=|\psi_{+}\rangle=\frac{|01\rangle+|10\rangle}{\sqrt{2}}\\ D=|\phi_{-}\rangle=\frac{|00\rangle-|11\rangle}{\sqrt{2}} \end{aligned}\]
They can be entangled! \[\begin{aligned} A=|\phi_{+}\rangle=\frac{|00\rangle+|11\rangle}{\sqrt{2}}\\ B=|\psi_{-}\rangle=\frac{|01\rangle-|10\rangle}{\sqrt{2}}\\ C=|\psi_{+}\rangle=\frac{|01\rangle+|10\rangle}{\sqrt{2}}\\ D=|\phi_{-}\rangle=\frac{|00\rangle-|11\rangle}{\sqrt{2}} \end{aligned}\]
Hidden Variable theories¹
  1. Krastanov et al.
    Art installation on Non-contextual Hidden Variable theories

They can be noisy!

Desired:

\[\begin{aligned} A=\frac{|00\rangle+|11\rangle}{\sqrt{2}}\\ \end{aligned}\]

The hardware generated:

90% chance for \[\begin{aligned} A=\frac{|00\rangle+|11\rangle}{\sqrt{2}}\\ \end{aligned}\] 10% chance for a bit flip on Bob's qubit \[\begin{aligned} C=\frac{|01\rangle+|10\rangle}{\sqrt{2}}\\ \end{aligned}\]

Purification of entanglement

\[\begin{aligned} A=|\phi_{+}\rangle=\frac{|00\rangle+|11\rangle}{\sqrt{2}}\\ B=|\psi_{-}\rangle=\frac{|01\rangle-|10\rangle}{\sqrt{2}}\\ C=|\psi_{+}\rangle=\frac{|01\rangle+|10\rangle}{\sqrt{2}}\\ D=|\phi_{-}\rangle=\frac{|00\rangle-|11\rangle}{\sqrt{2}} \end{aligned}\]

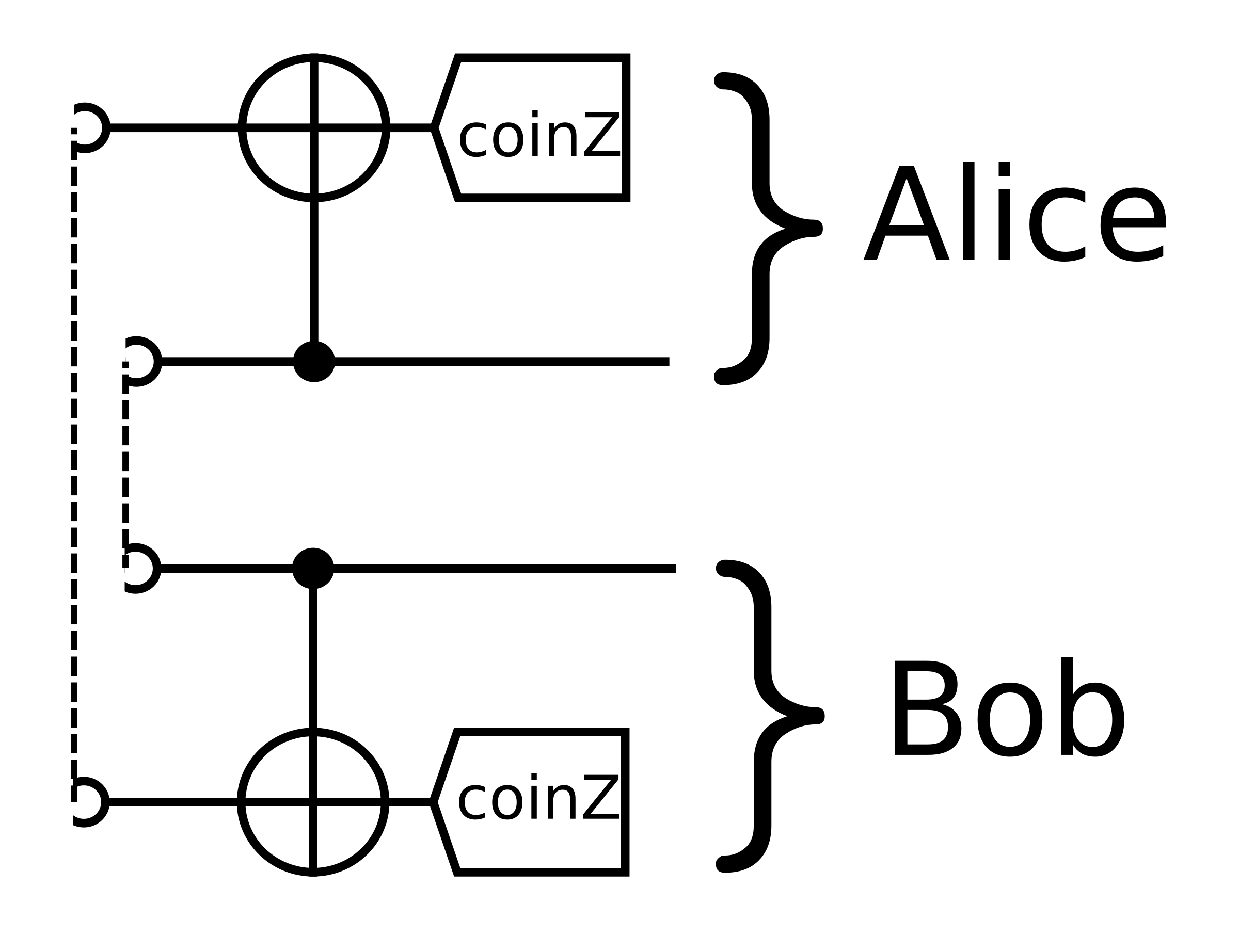

Simple entanglement purification circuit
\[\begin{aligned} A\propto|00\rangle+|11\rangle\\ B\propto|01\rangle-|10\rangle\\ C\propto|01\rangle+|10\rangle\\ D\propto|00\rangle-|11\rangle \end{aligned}\]

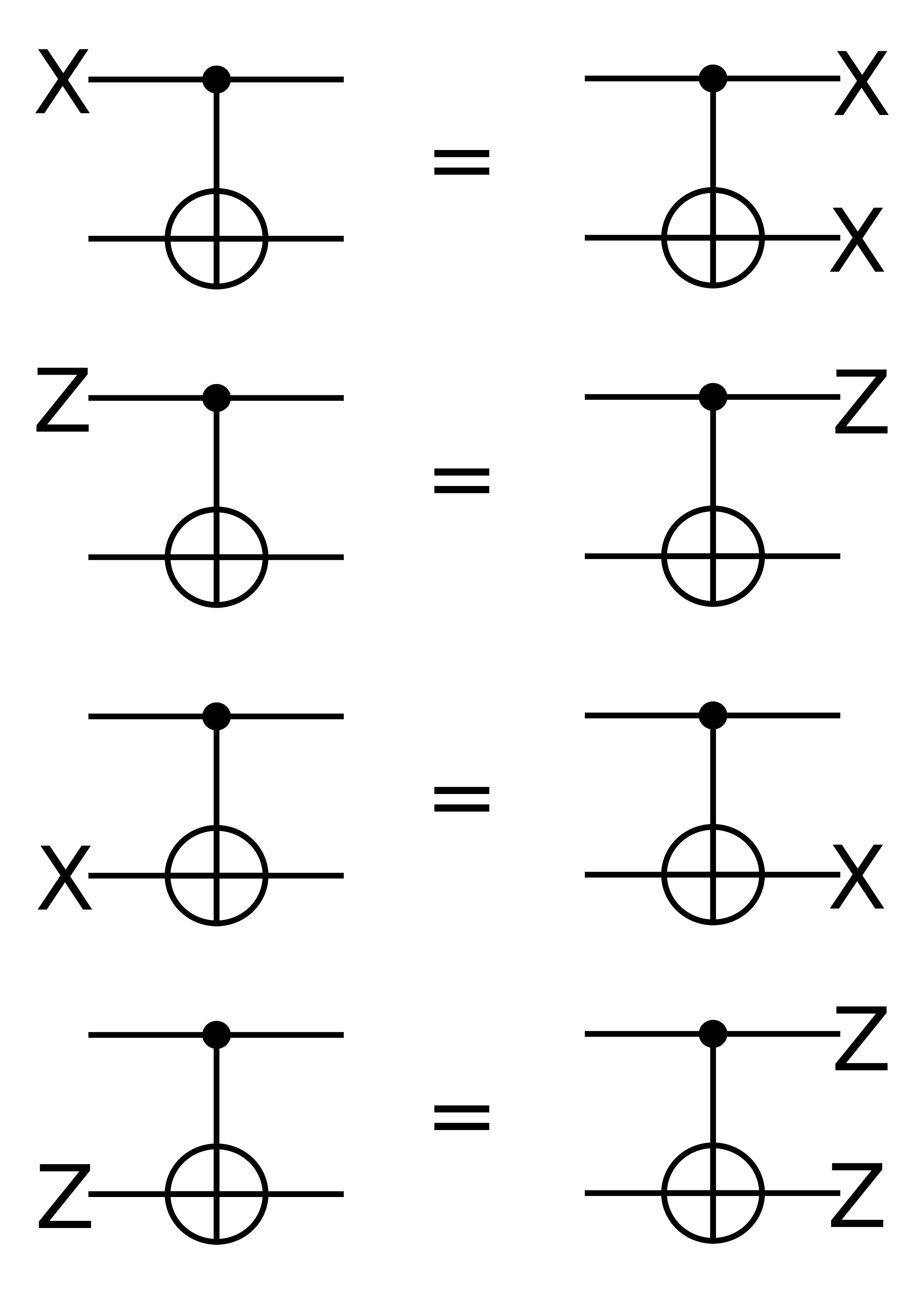

Purification as error propagation and detection
\[\begin{aligned} A\propto|00\rangle+|11\rangle\\ B\propto|01\rangle-|10\rangle\\ C\propto|01\rangle+|10\rangle\\ D\propto|00\rangle-|11\rangle \end{aligned}\]

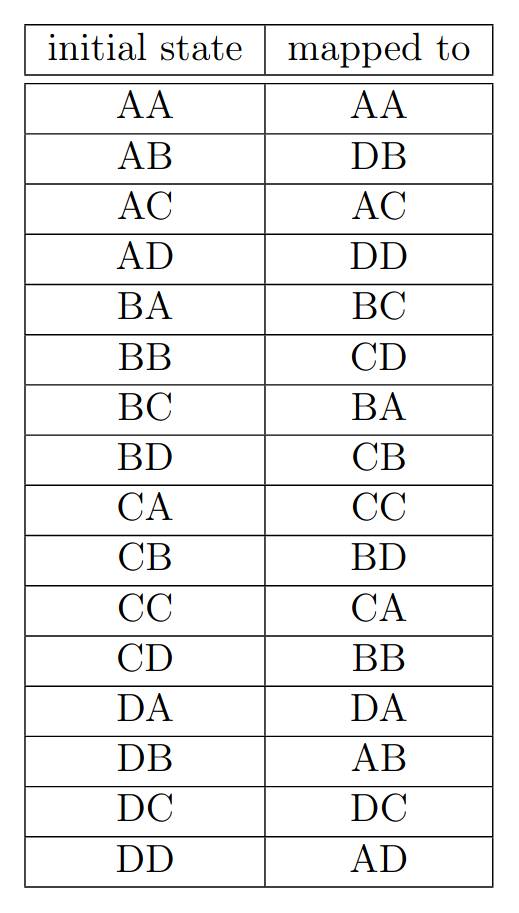

Purification as reshuffling of probabilities
\[\begin{aligned} A\propto|00\rangle+|11\rangle\\ B\propto|01\rangle-|10\rangle\\ C\propto|01\rangle+|10\rangle\\ D\propto|00\rangle-|11\rangle \end{aligned}\]
Purification as reshuffling of probabilities

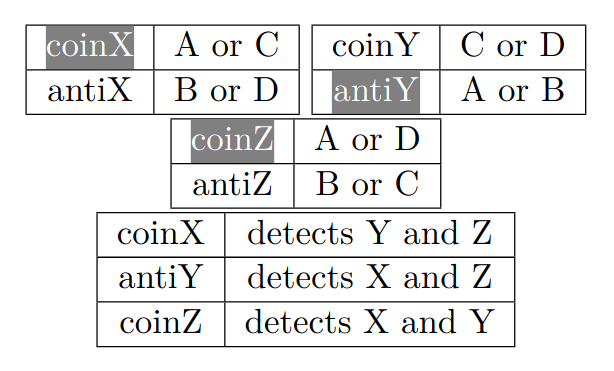

Possible coincidence measurements

A convenient representation for the density matrix

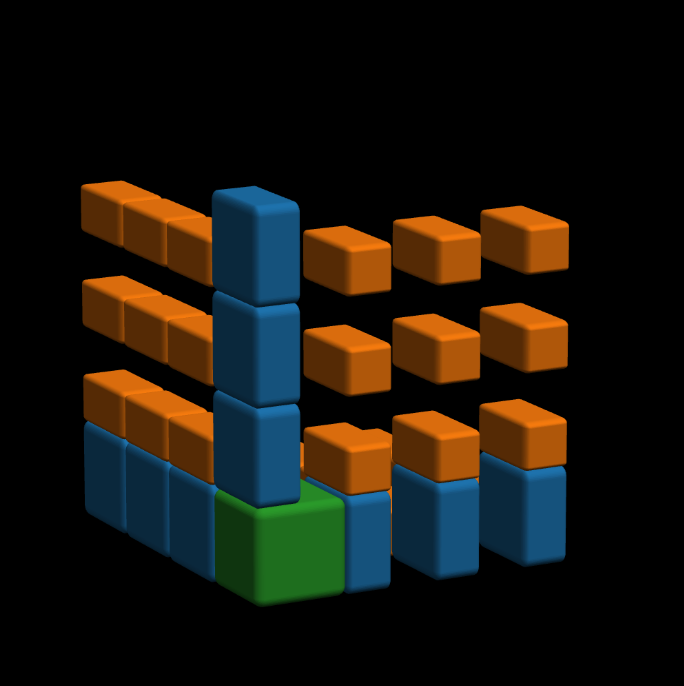

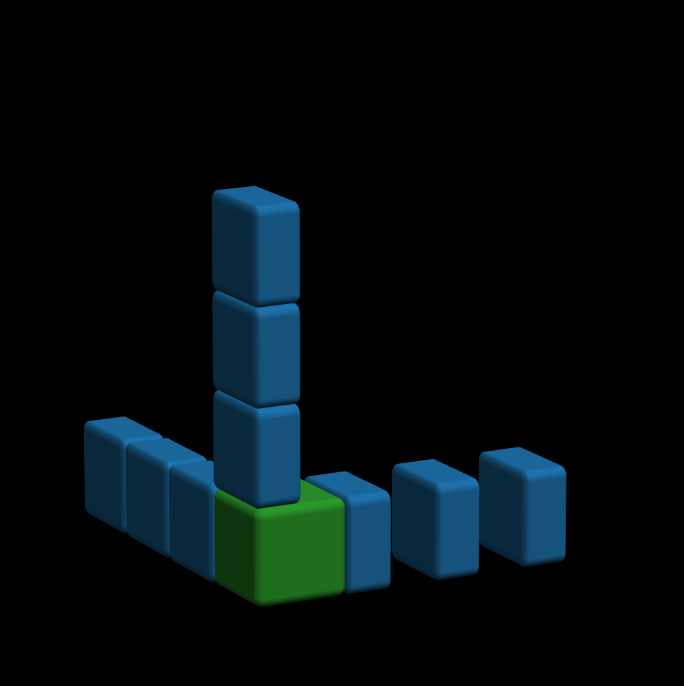

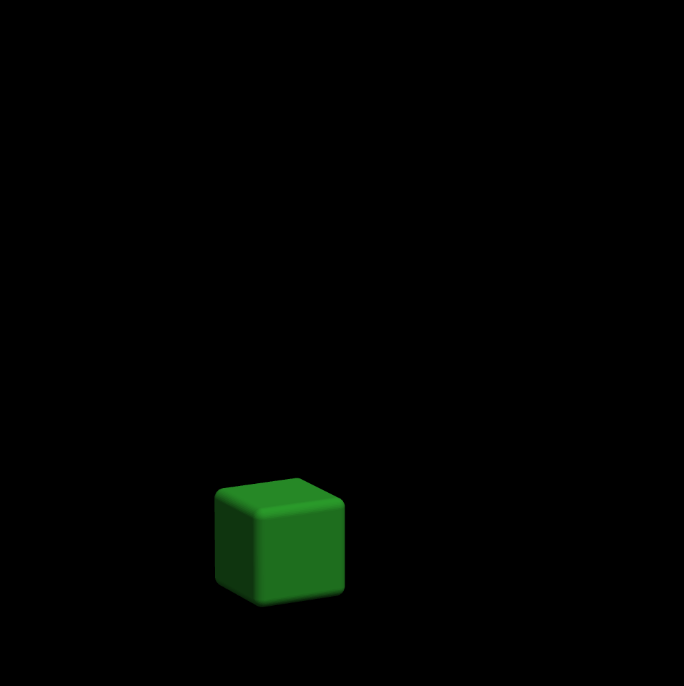

A hypercube of probabilities
\[\begin{aligned} A\propto|00\rangle+|11\rangle\\ B\propto|01\rangle-|10\rangle\\ C\propto|01\rangle+|10\rangle\\ D\propto|00\rangle-|11\rangle \end{aligned}\]
... How are we going to find the "good" permutation?
What if we want multi-sacrifice circuit?

Discrete Optimization: Evolutionary Algorithm

Discrete Optimization: Evolutionary Algorithm

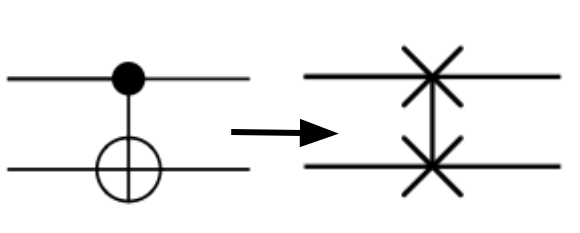

Mutations

Discrete Optimization: Evolutionary Algorithm

Mutations

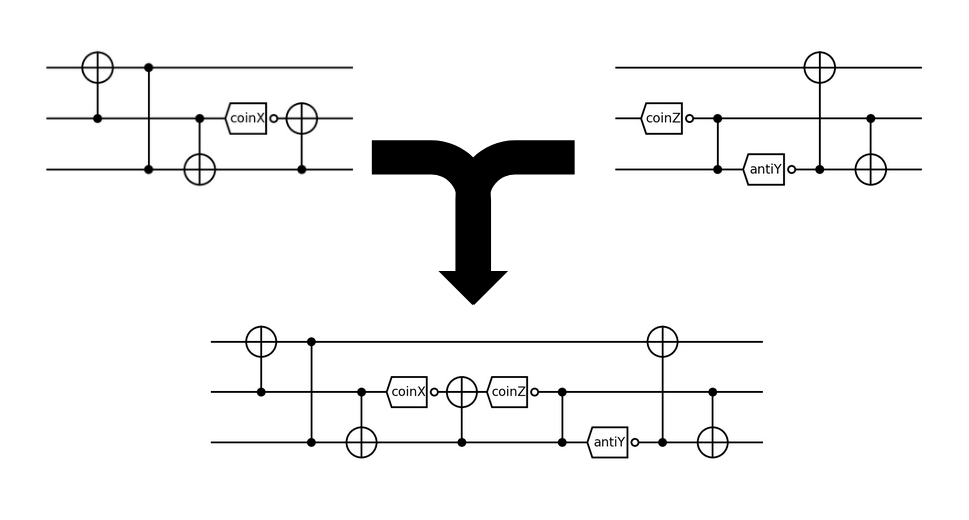

Offspring circuits

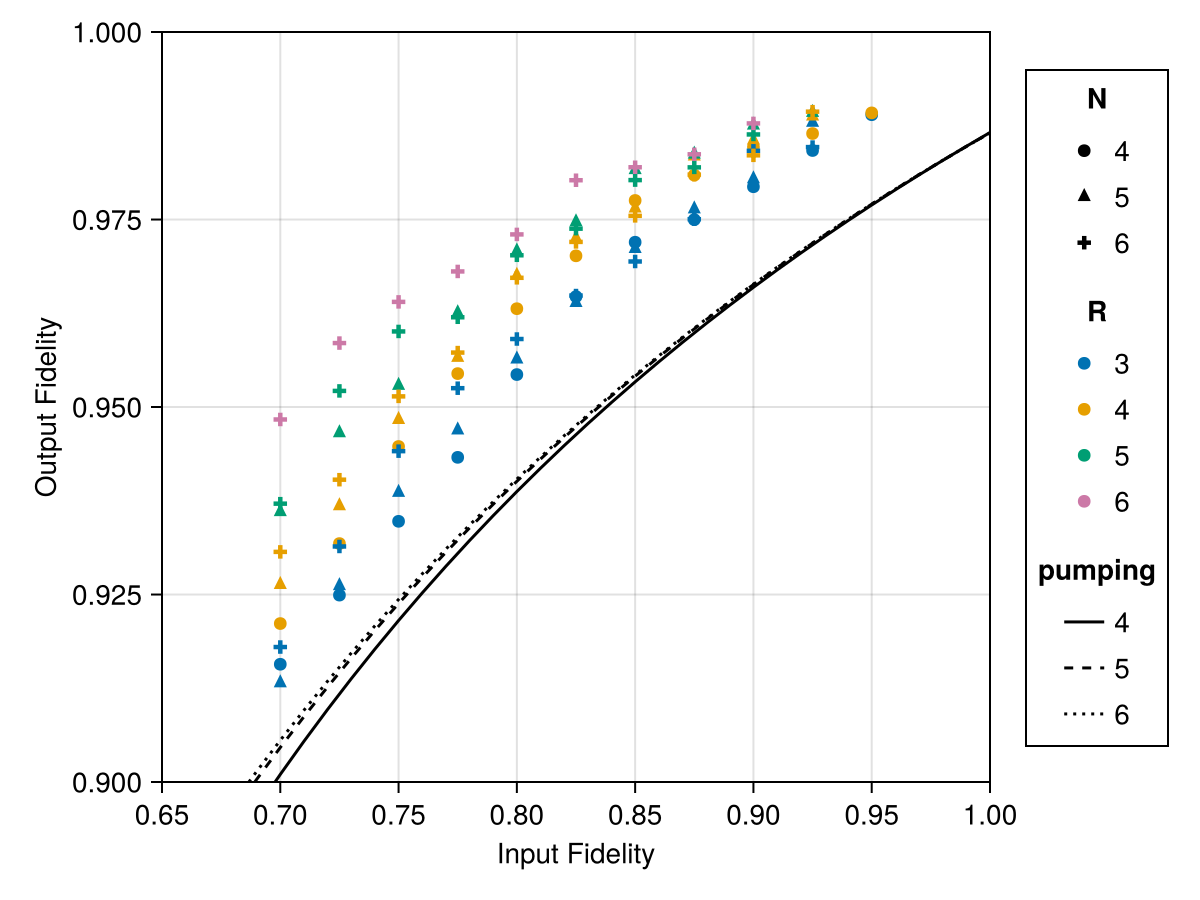

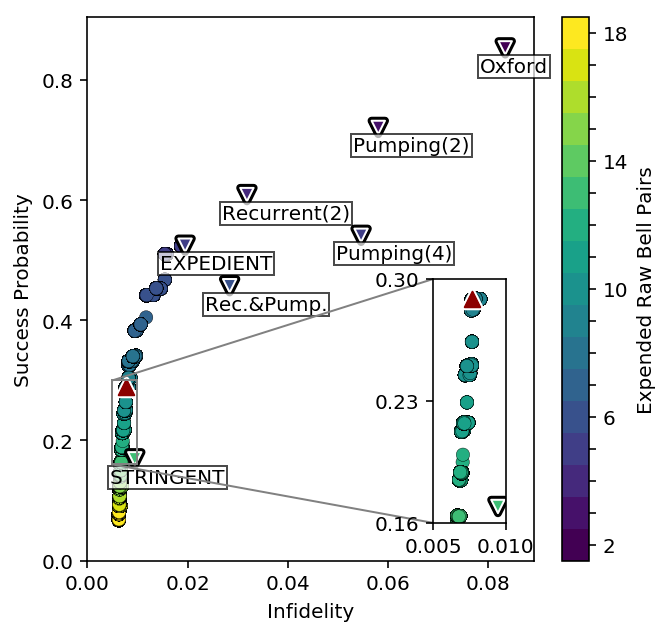

Optimized circuits for purification¹, better than any known circuits.
  1. Krastanov et al.
    Optimized Entanglement Purification
  2. Jansen et al.
    Enumerating all bilocal Clifford distillation protocols through symmetry reduction

n-to-k purification protocols¹

  1. Addala, Ge, Krastanov
    Faster-than-Clifford simulations of entanglement purification circuits [...]

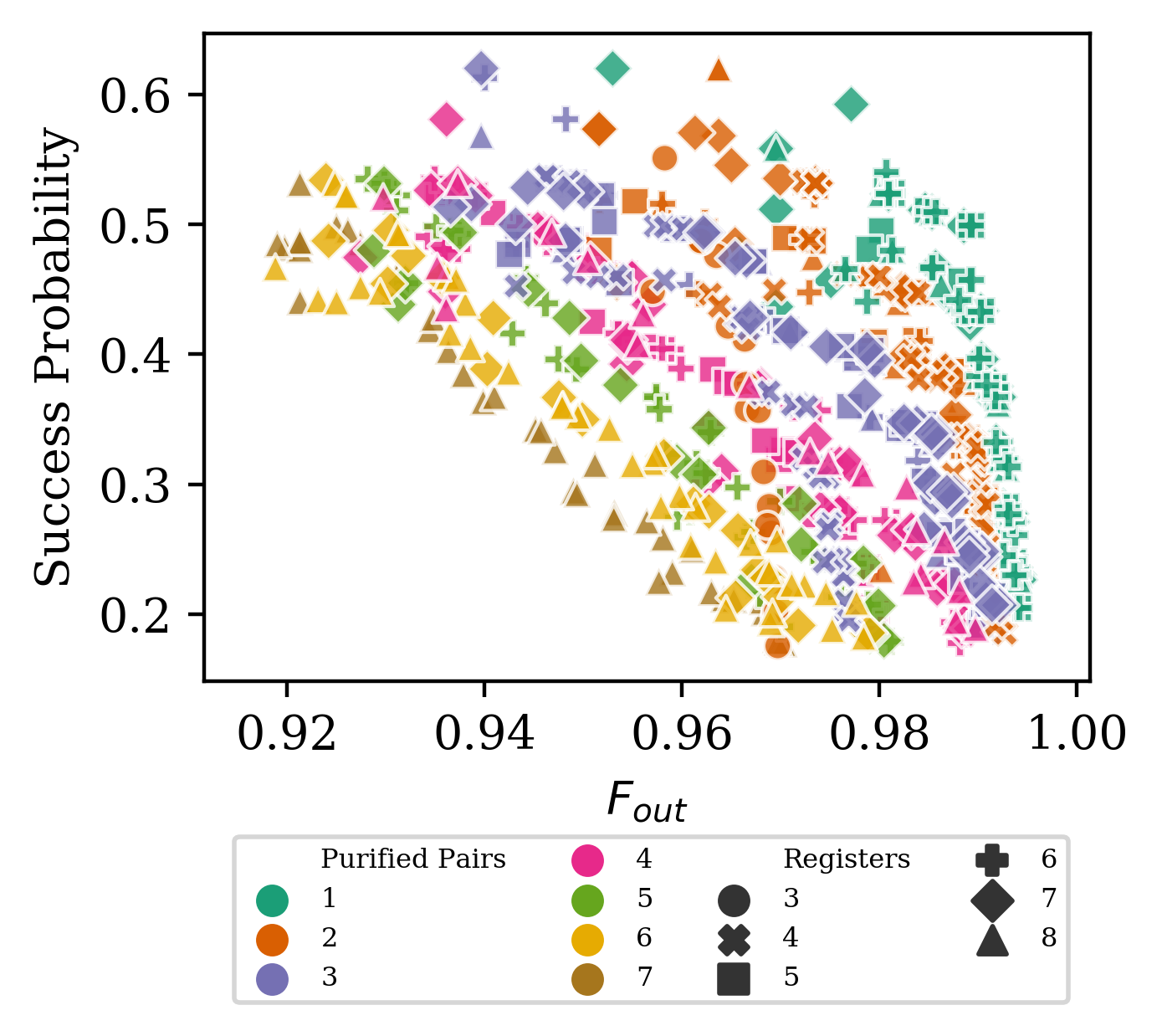

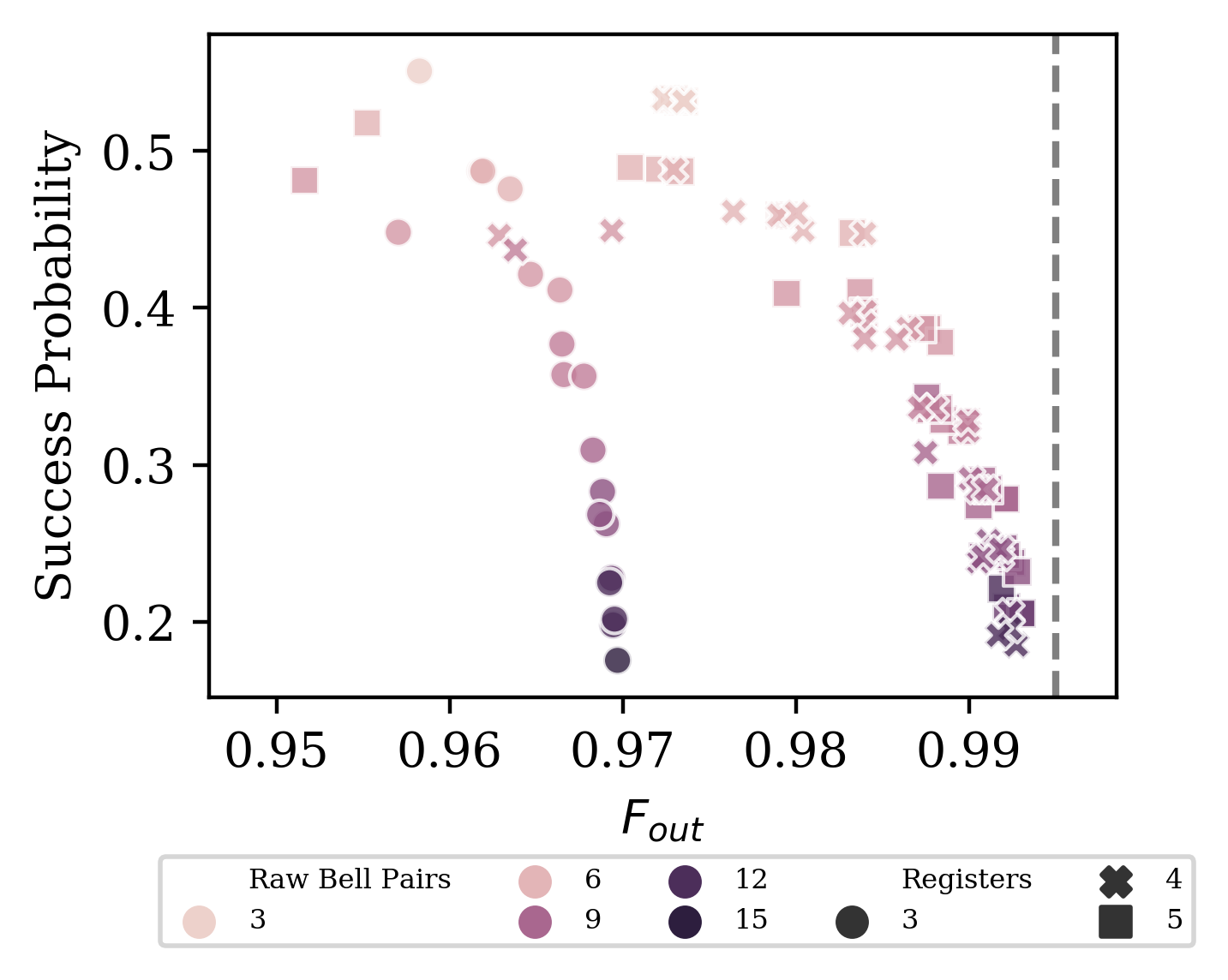

Purification protocols with varying sacrificial pairs, purified pairs, and register width.
A minimum-width register is necessary. Here, with n-to-2 purification examples, we need a width of 4.

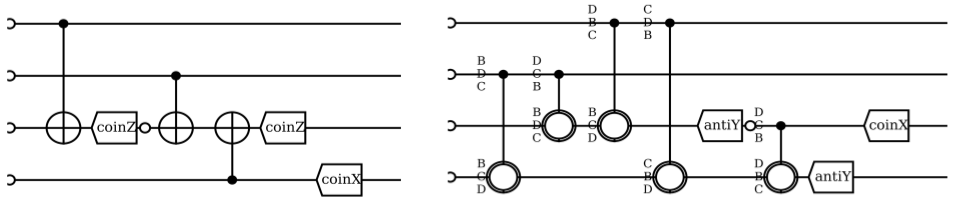

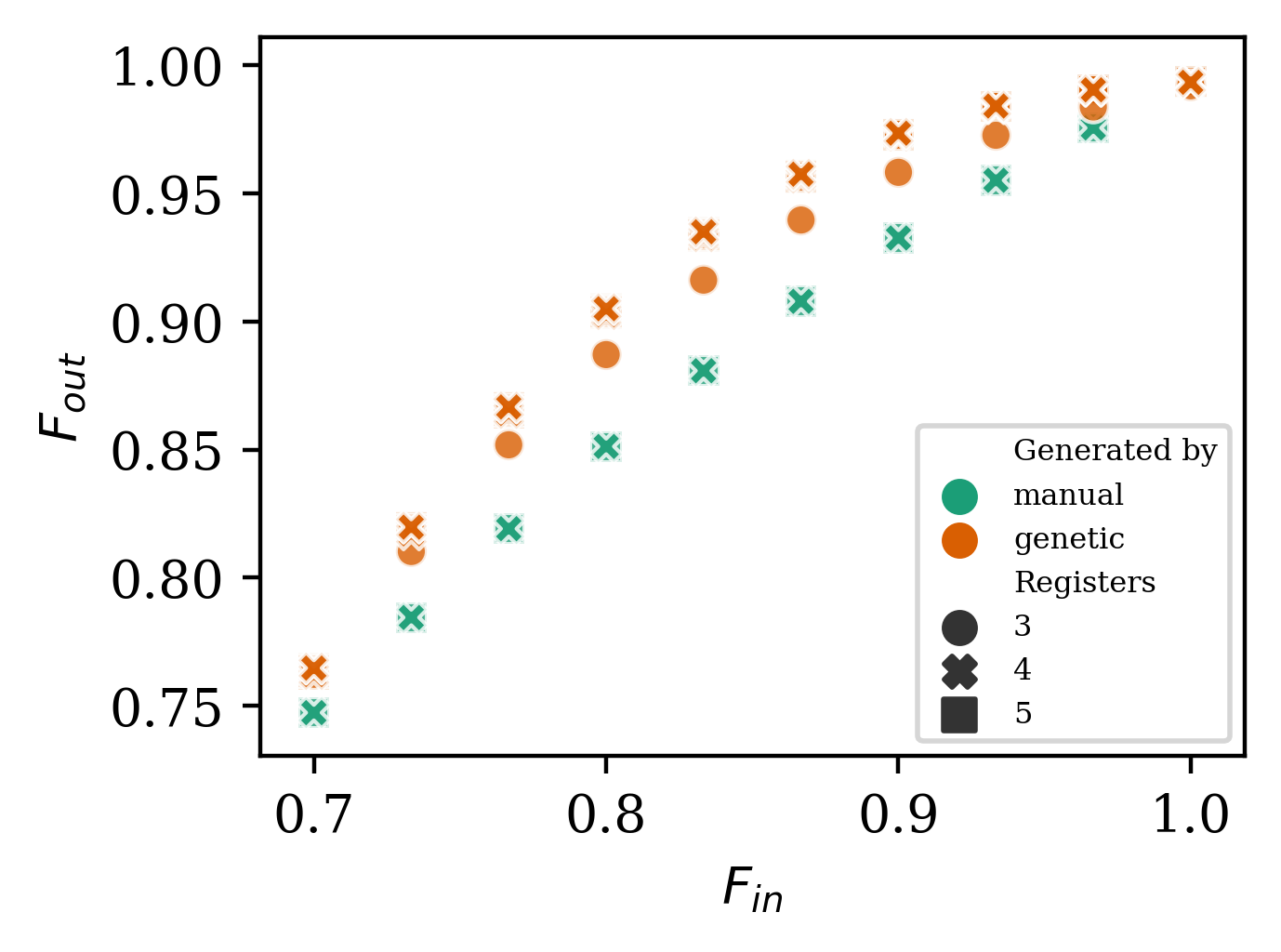

A typical 5-to-2 purification circuit on a small register.
What figure of merit should we be using?
The hypercube of probabilities describing the state of 3 noisy Bell pairs.

Optimization of concatenated
purification ⟶ ECC teleportation
protocols¹

  1. Addala, Ge, Krastanov
    Faster-than-Clifford simulations of entanglement purification circuits [...]

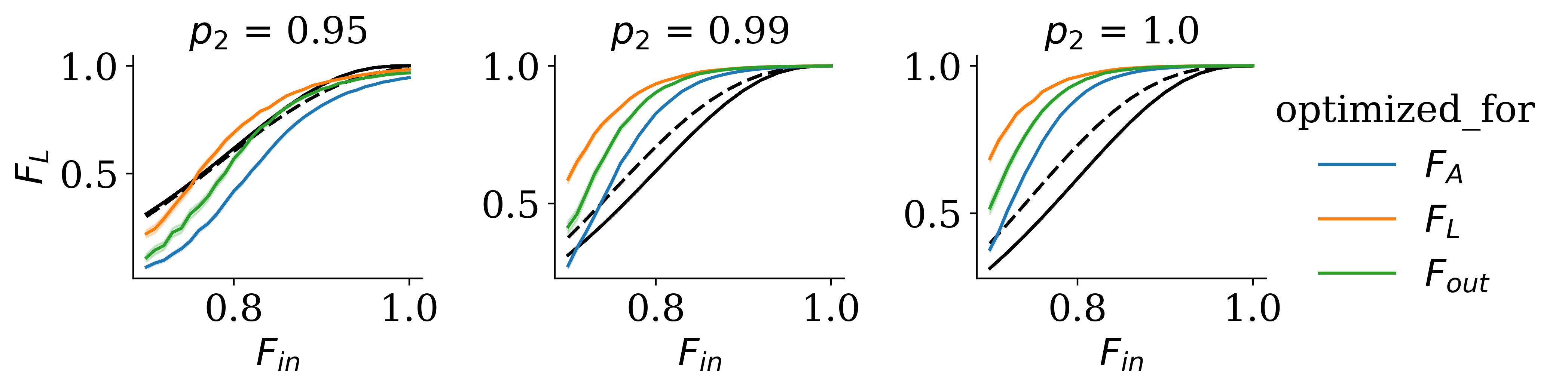

For teleportation without ECC.
For distance 3 codes (1 correctable error)
For distance 5 codes (2 correctable errors)
14-to-11 purification followed by a teleportation of a [[11,2,5]] code. Each line is a differently optimized circuit.

Modeling Entanglement More Efficiently¹

  1. Addala, Ge, Krastanov
    Faster-than-Clifford simulations of entanglement purification circuits [...]

Error-detection circuits are Clifford circuits

Clifford circuits are efficient to simulate on stabilizer states
\[\begin{aligned} A\propto|00\rangle+|11\rangle \sim\begin{bmatrix}+&XX\\+&ZZ\end{bmatrix}\\ B\propto|01\rangle-|10\rangle \sim\begin{bmatrix}-&XX\\-&ZZ\end{bmatrix}\\ C\propto|01\rangle+|10\rangle \sim\begin{bmatrix}-&XX\\+&ZZ\end{bmatrix}\\ D\propto|00\rangle-|11\rangle \sim\begin{bmatrix}+&XX\\-&ZZ\end{bmatrix} \end{aligned}\]
\[A\otimes B\otimes D \sim\begin{bmatrix}+&XX&II&II\\+&ZZ&II&II\\ -&II&XX&II\\-&II&ZZ&II\\ +&II&II&XX\\-&II&II&ZZ\end{bmatrix}\]
\[A\otimes B\otimes D \sim\begin{bmatrix}+&XX&&\\+&ZZ&&\\ -&&XX&\\-&&ZZ&\\ +&&&XX\\-&&&ZZ\end{bmatrix}\]
Bell state tableaux are block-diagonal and error-detection circuits only permute the Bell basis!
\[A\otimes B\otimes D \sim\begin{matrix}+&\phantom{XX}&\phantom{XX}&\phantom{XX}\\+&&&\\ -&&&\\-&&&\\ +&&&\\-&&&\end{matrix}\]
Bell state tableaux are block-diagonal and error-detection circuits only permute the Bell basis!

\[ \underbrace{A\otimes B\dots}_{n\text{ pairs}} \]

\[ \left.\begin{pmatrix}0\\1\\0\\\vdots\\0\end{pmatrix}\right\}\scriptsize \mathcal{O}(2^n) \]

\[ \left.\begin{bmatrix}+&XX&\\+&ZZ&\\&&\ddots\end{bmatrix}\right\}\scriptsize \mathcal{O}(n\times n) \]

\[ \underbrace{0011\dots}_{2n \text{ bits}} \]

What (bi-local) gates exist in this more efficient formalism?
  • Let us call them "Bell Permuting" or "Bell Preserving" gates
  • Let us denote them $\mathrm{BP}(n)$
  • Permuting gates are Clifford gates
  • Not all permutations are local
  • Are there Non-Clifford gates that are useful for distillation?

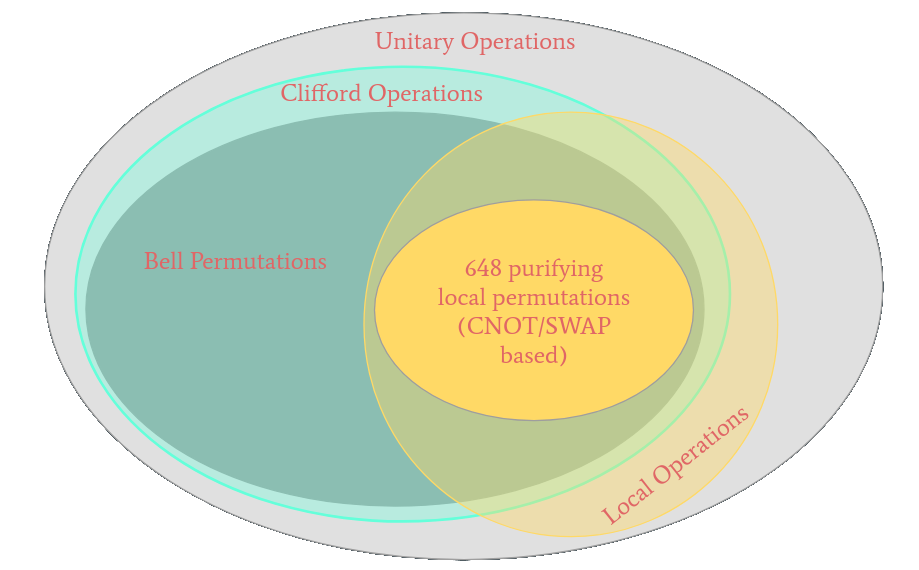

The most general Bell Permuting gate?
All Clifford gates $\mathcal{C}_n$ on n qubits $$ |\mathcal{C}_n| = 2(4^n-1)4^n|\mathcal{C}_{n-1}| $$
Clifford gates $\mathcal{C}^*_n$ that do not specify phases $$ |\mathcal{C}^*_n| = \frac{1}{4^n}|\mathcal{C}_n| $$
i.e. $\mathcal{C}^*_n = \mathcal{C}_n/\mathcal{P}_n$
i.e. any $\mathcal{C}_n$ gate can be written as
$C.P\ |\ P\in\mathcal{P}_n\,,C\in\mathcal{C}^*_n$
Bell Preserving (bi-local) gates on n Bell pairs
$$ \mathcal{B}_n $$
$$ \mathcal{B}^*_n = \mathcal{B}_n / \mathcal{P}_n = \mathrm{Sp}(2n, \mathbb{F}_2)$$
$$ \mathcal{B}^*_2 = \mathrm{Sp}(4, \mathbb{F}_2) = \{\underbrace{g}_{\tiny Alice}\otimes \underbrace{g}_{\tiny Bob}\ |\ g\in\mathcal{C}^*_2\}^\textrm{\ \ \ see [1,2]}$$
a useful set of cosets: $ Q = \mathcal{C}^*_2 / (\mathcal{C}^*_1 \otimes \mathcal{C}^*_1) $
which provides 20 "distinct" two-qubit gates
  1. Jansen et al.
    Enumerating all bilocal Clifford distillation protocols through symmetry reduction
  2. Dehaene et al.
    Local permutations of products of Bell states and entanglement distillation

Bell Preserving (bi-local) gates on 2 Bell pairs

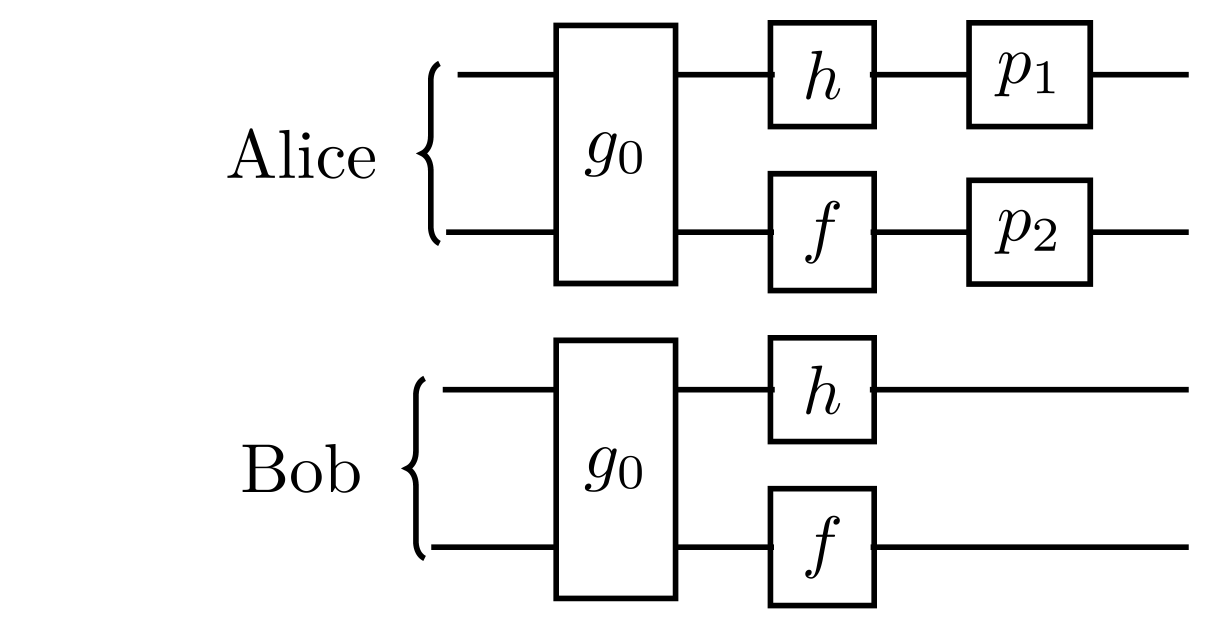

A $\mathcal{B}_2$ gate can be written as $\underbrace{(g.p)}_{\tiny Alice}\otimes\underbrace{(g)}_{\tiny Bob}$
where $p\in\mathcal{P}_2$
and $g\in\mathcal{C}^*_2$ can be written as $g = g_0.(h\otimes f)$
$h\in\mathcal{C}^*_1$ and $f\in\mathcal{C}^*_1$ and $g_0\in Q$

Bell Preserving (bi-local) gates on 2 Bell pairs

\[ p_1 \in \mathcal{P}_1 \] \[ p_2 \in \mathcal{P}_1 \]
2 Pauli gates
(4 possibilities each)
\[ h\in\mathcal{C}^*_1 \] \[ f\in\mathcal{C}^*_1 \]
2 single-qubit Cliffords
(6 possibilities each)
\[ g_0 \in Q = \mathcal{C}^*_2 / (\mathcal{C}^*_1\otimes\mathcal{C}^*_1) \]
20 "inherently multiqubit" gates

20×6×6×4×4 = 720×16 = 11520 different Bell Preserving 2-pair gates

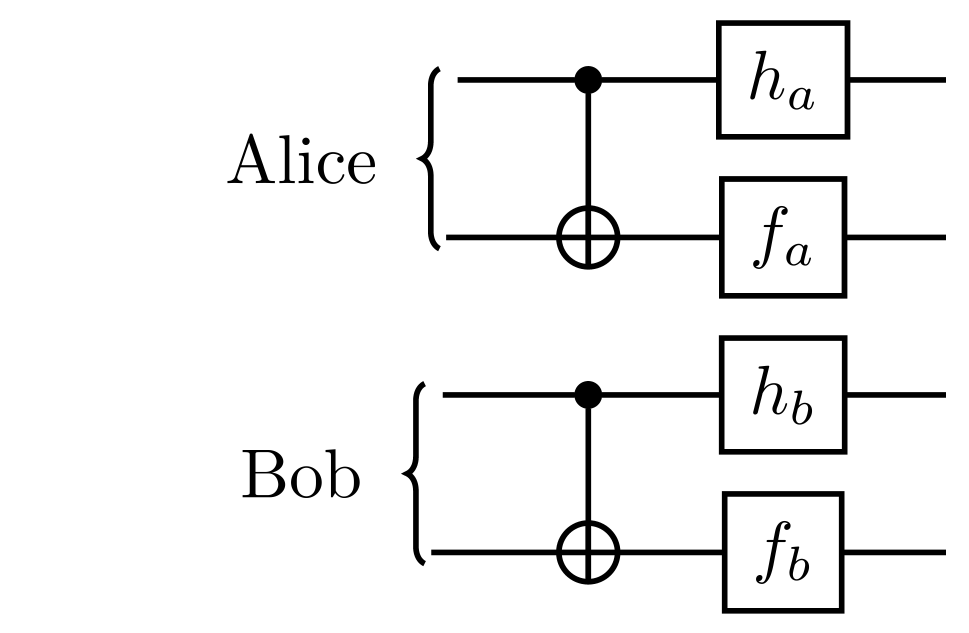

Bell Preserving (bi-local) gates

That also maps AA ⟶ AA
There 720 such gates
But just 36 suffice for state of the art purification...
There are 6 possible options for $h_a\otimes h_b$ and $f_a\otimes f_b$ each.
Namely the 6 permutations of BCD.

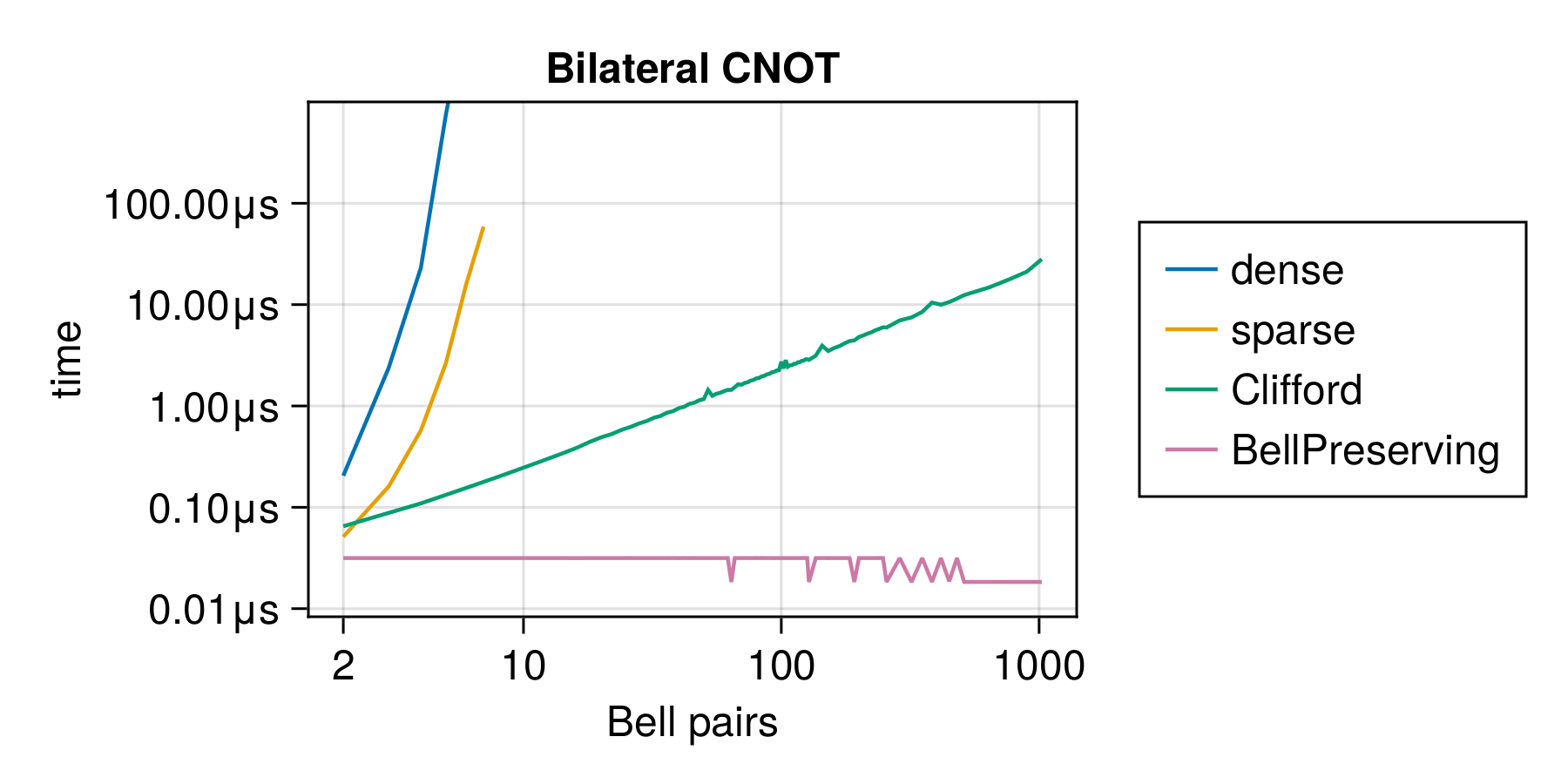

Time to perform a pair of CNOT gates, depending on formalism

Modeling Multipartite Entanglement More Efficiently¹

  1. Wang, Avis, Krastanov
    GHZ-Preserving Gates and Optimized Distillation Circuits

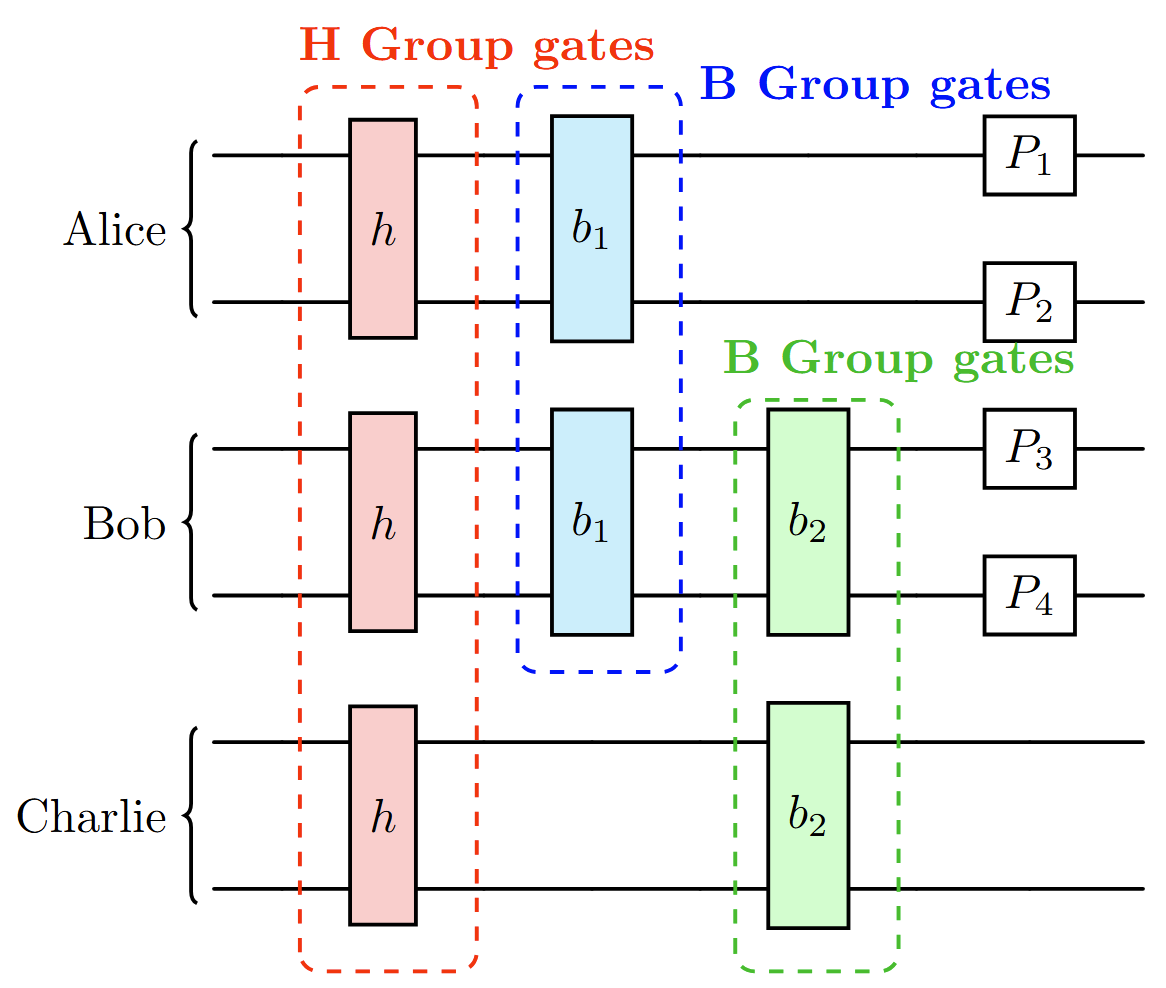

The most-general GHZ distilling circuit.
$h \in \{I, SWAP, CNOT_{12}, CNOT_{21},DCX_{12},DCX_{21}\}$ $b_i \in\left\{ (g\cdot(f_1 \otimes f_2))\, |\, g \in \{I, CZ\}, (f_1, f_2) \in \{I, S\}^2\right\}$
  1. Wang, Avis, Krastanov
    GHZ-Preserving Gates and Optimized Distillation Circuits
Optimized GHZ-distilling circuits much better than circuits available in the literature.
  1. Wang, Avis, Krastanov
    GHZ-Preserving Gates and Optimized Distillation Circuits

Tool Building for Everyone

  1. Pelenur, Krastanov

Taking Optimization Seriously

Even your Monte Carlo simulations should be "differentiable"!
  1. Arya et al.
    Automatic Differentiation of Programs with Discrete Randomness
  2. Avis, Krastanov
    Optimization of quantum-repeater networks using stochastic automatic differentiation
  3. Krastanov and OSS team
    QuantumClifford.jl

Better modeling and better optimization for entanglement exist

Try out BPGates.jl for better purification circuits.

Try out QuantumClifford.jl for stabilzer algebra

Be an early tester for QuantumSavory.jl



Including work done by Vaishnavi Addala, Shu Ge, Mingyuan Wang, Guus Avis, Isaac Pelenur.

Expanding the team, hiring scientists and software engineers

Design of optical/mechanical/spin devices/networks with CQN, NIST, Sandia, Mitre, and MIT.

Working on practical hardware-aware ECC in networking and computing.

Creating new tools for the entire community.
